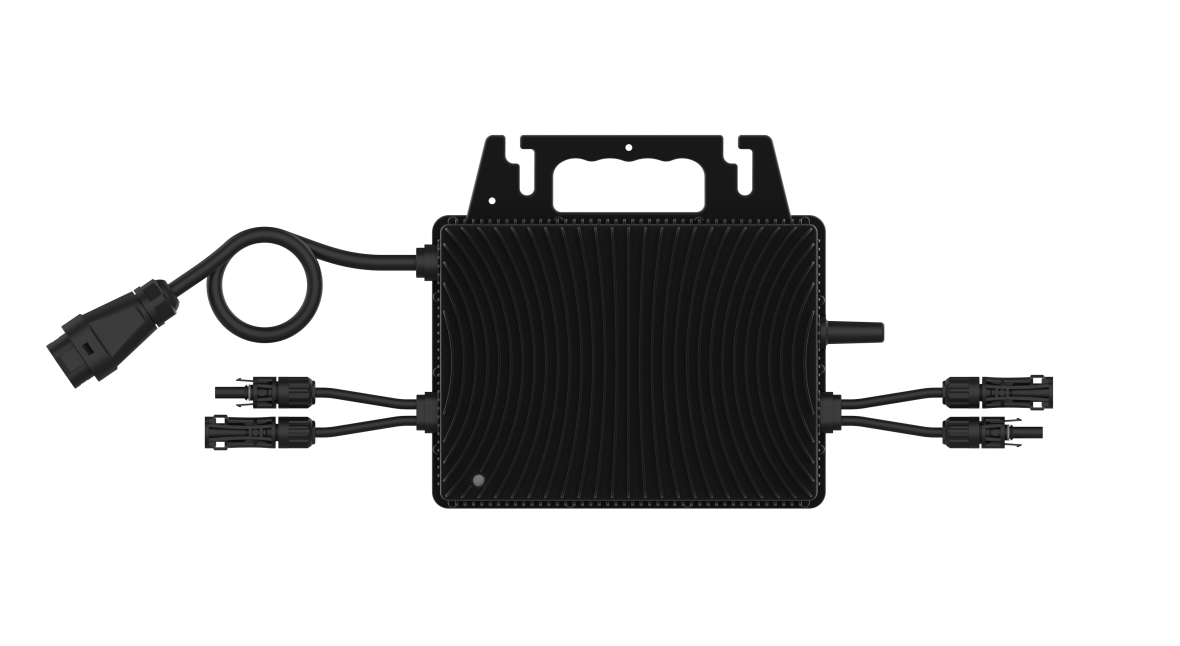

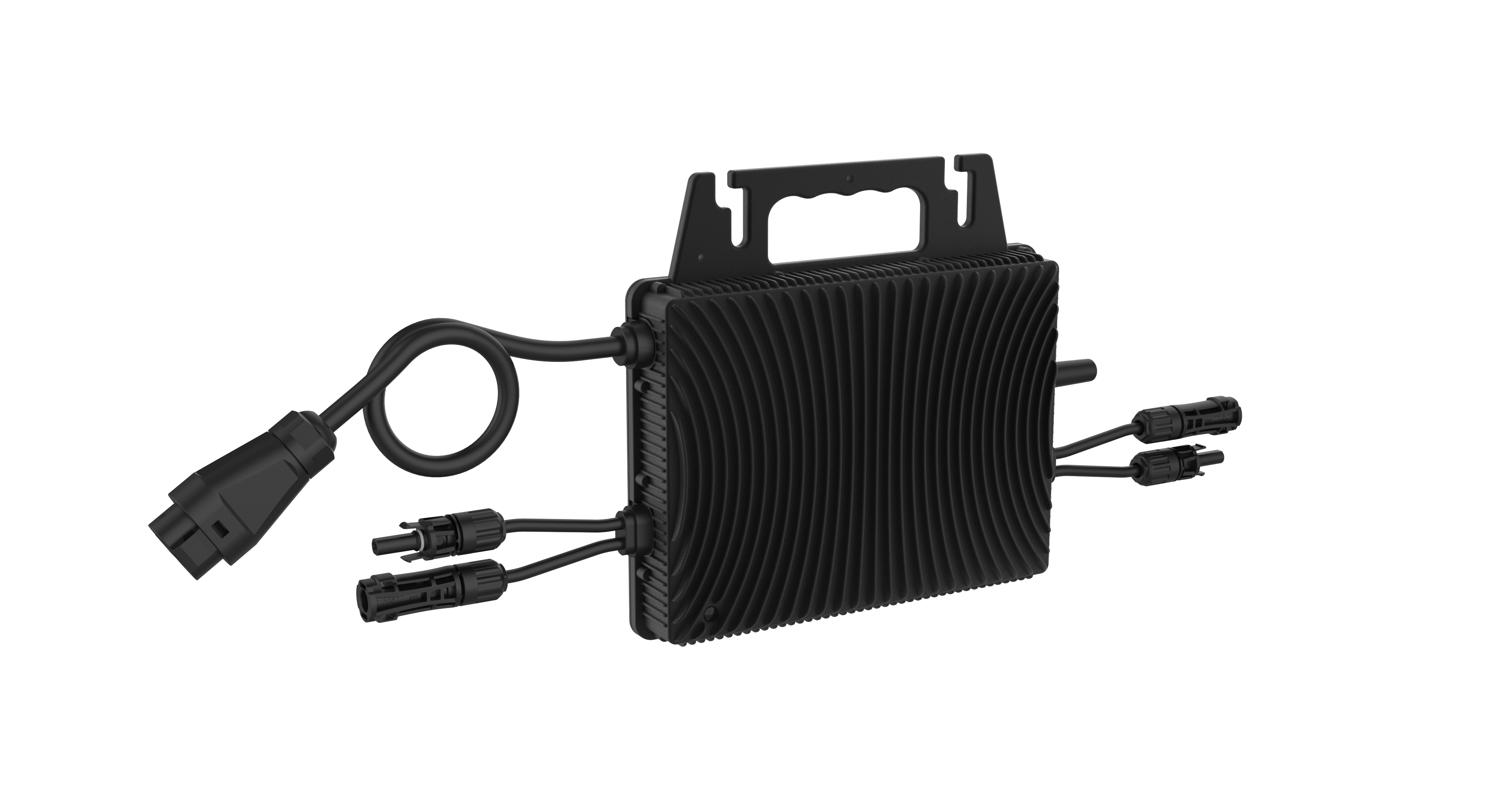

NS-060S/080S-Commercial BIPV Solar Carports | Waterproof & EV Charging Ready

Product details

Safer with rapid shutdown compliance
Plug & Play, easy installation
2 MPPTs, 96.7%+ peak efficiency
WiFi integrated, direct communication with APP. Module level monitoring
IP67 protection, adapt to outdoor use

Specification

Product Model	NS-060S	NS-080S
Input Data (DC)
Recommended PV Module Power (W)	(240~405+)*2	(320~540+)*2
MPPT Votage Range (V)	16 ~ 60
Maximum Input Voltage (V)	60.00
Startup Voltage (V)	22
Maximum Input Current (A)	16*2	16*2
Maximum input short circuit current (ISC) (A)	25
Number of MPPTs	2
Output Data (AC)
Rated Output Power (W)	600	800
Rated Output Current (A)	2,61	3.48
Nominal Output Voltage (V)	220 / 230 / 240
Nominal Output Frequency (Hz)	50 / 60
Power Factor (Default/Adjustable)	0.99/0.90 leading...0.90 lagging
Total Harmonic Distortion (THDi)	＜3%
Maximum units per branch	8	6
Efficiency
Peak Efficiency	96.70%
Nominal MPPT Efficiency	99.90%
Nighttime Power Consumption (mW)	<50
Mechanical Data
Operating Temperature Range(℃)	-40 ~ +65
Storage Temperature Range(℃)	-40 ~ +85
Altitude (m)	4000
Noise (dB)	<20
Enclosure Environmental Rating	IP67
Cooling	Natural Cooling
Dimensions (WHD mm)	23522335
Weight (kg)	3.30
Features
Communication	WiFi /2.4G
Monitoring System	Inver Cloud
APP	Inver Dealer / Inver Energy
Warranty	12 Years
Compliance	CE / VDE-4105 / VDE-4105 / CEI 0-21 / EN 50549-1 /NF-EN 50549 / PN-EN 50549 / CQC
