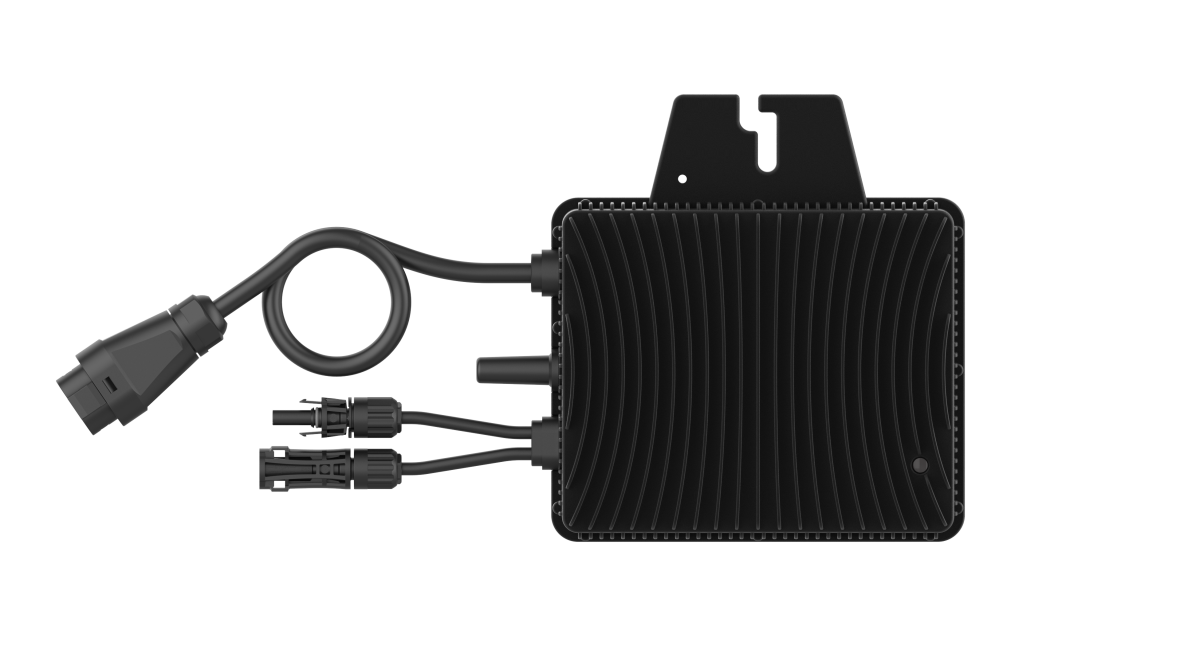

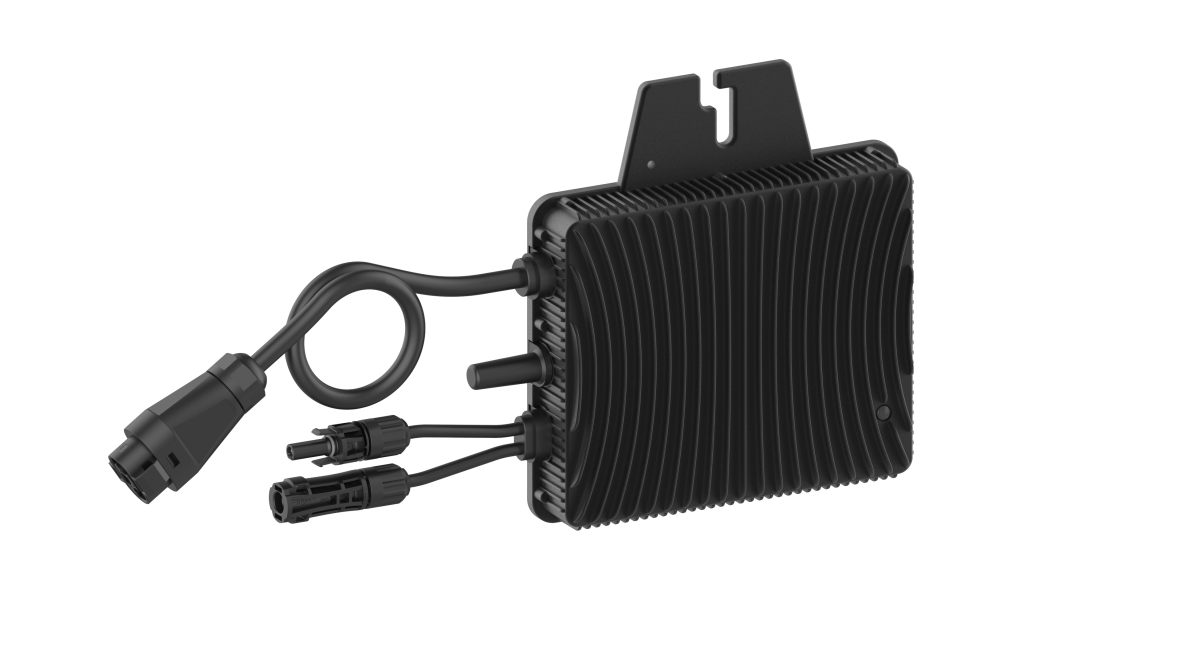

NS-030S/040S/050S-Commercial BIPV Solar Carports | Waterproof & EV Charging Ready

Product details

Safer with rapid shutdown compliance
Plug & Play, easy installation
MPPT per module, 96.7%+ peak efficiency
WiFi integrated, direct communication with APP.Module level monitoring
IP67 protection, adapt to outdoor use

Specification

Product Model	NS-030S	NS-040S	NS-050S
Input Data (DC)
Recommended PV Module Power (W)	240~405+	320~540+	400~670+
MPPT Votage Range (V)	16 ~ 60
Maximum Input Voltage (V)	60
Startup Voltage (V)	22
Maximum Input Current (A)	12	14	16
Maximum input short circuit current (ISC) (A)	25
Number of MPPTs	1
Output Data (AC)
Rated Output Power (W)	300	400	500
Rated Output Current (A)	1.3	1.74	2.17
Nominal Output Voltage (V)	220 / 230 / 240
Nominal Output Frequency (Hz)	50 / 60
Power Factor (Default/Adjustable)	0.99/0.90 leading...0.90 lagging
Total Harmonic Distortion (THDi)	＜3%
Maximum units per branch	27	20	16
Efficiency
Peak Efficiency	96.70%
Nominal MPPT Efficiency	99.80%
Nighttime Power Consumption (mW)	<50
Mechanical Data
Operating Temperature Range(℃)	-40 ~ +65
Storage Temperature Range(℃)	-40 ~ +85
Altitude (m)	4000
Noise (dB)	<20
Enclosure Environmental Rating	IP67
Cooling	Natural Cooling
Dimensions (WHD mm)	19220835
Weight (kg)	2.1
Features
Communication	WiFi /2.4G
Monitoring System	MInverter Cloud
APP	MInverter / MInverter Dealer
Warranty	12 Years
Compliance	CE / VDE-4105 / CEI O-21

Q:What are Saiko Global's main products and services?

A: Saiko Global provides a wide range of products including ground supports, roof supports, floating supports, BIPV roof solutions, photovoltaic carports, and tracking systems . We also offer comprehensive solar power system integration and full EPC/EPCC technical services.

Q:Do your materials have international quality certifications?

A: Yes, our aluminum alloy materials proudly hold the rigorous Certification for Japanese Industrial Standards (JIS).

Q:What is your manufacturing capacity and can you ensure on-time delivery?

A: We operate three major manufacturing facilities: Xiamen Factory, Quanzhou Aluminum Factory, and Tianjin Production Base. Together, they provide an annual production capacity exceeding 1GW+, ensuring timely delivery for large-scale projects globally.

Q:Which countries and regions do you export to?

A: Our photovoltaic products are exported to over 30 countries globally. Our major markets include Malaysia, Japan, Vietnam, Israel, and the Middle East.

Q:Can you provide structural engineering support for our projects?

A: Absolutely. Our technical support team provides comprehensive services including design and structural analysis of the scaffold, as well as training and guidance on system installation .

Q:Are your BIPV solar carports fully waterproof?

A: Yes, we engineer specialized waterproof BIPV carports that have been successfully installed in MW-level projects.

Q:What types of terrains can your ground mounting systems handle?

A: Our ground support structures are highly adaptable and have been deployed in various environments, including flat and mountainous terrains. We offer aluminum, hot-dip galvanized steel, and magnesium-aluminum-zinc coated steel options.

Q:What kind of roofs are compatible with your mounting structures?

A: We provide customized solutions for multiple roof types, including color-coated steel roof trusses, tile roof trusses, and cement flat roof trusses.

Q:Do your solar tracking systems have industry certifications?

A: Yes, our single-axis tracking systems are both CPP and IEC certified to ensure maximum reliability. We also provide dual-axis tracking systems.

Q:How can I request a quote or a structural proposal?

A: You can easily request a reliable technical solution by reaching out to us at info@saikoglobal.com. Our team will assist you to help secure your project and successfully install the power station.
