Universal Bracket

Pre-assembled frame for fast and easy installationSuitable for various applications: ground, balcony or wall mountingAdjustable tilt angle to optimize energy outputCompatible with different PV module sizes and specsCost-effective solution with reliable performanceSupports microinverter APP connection for real-time

Product details

Pre-assembled frame for fast and easy installation

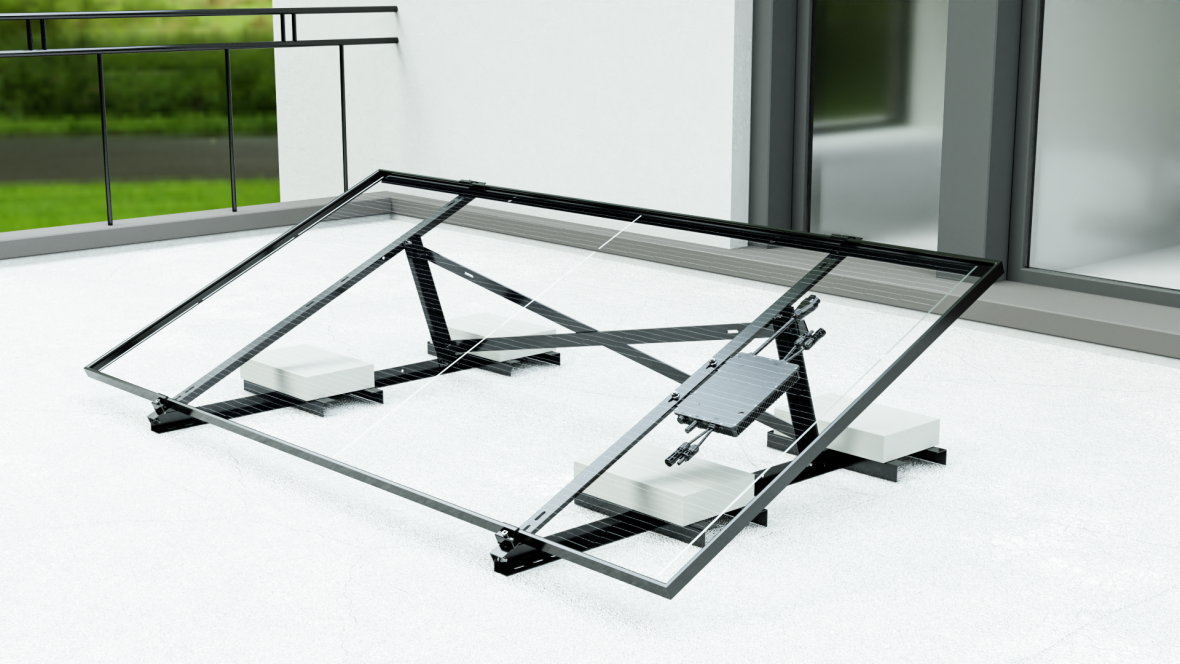

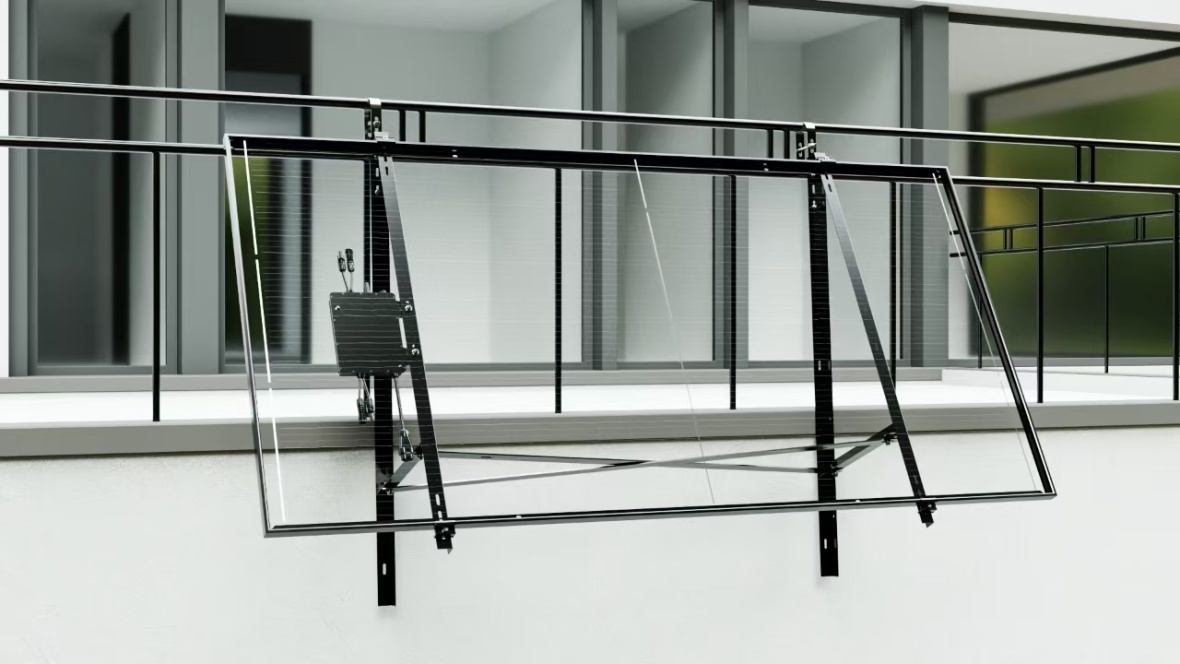

Suitable for various applications: ground, balcony or wall mounting
Adjustable tilt angle to optimize energy output
Compatible with different PV module sizes and specs
Cost-effective solution with reliable performance
Supports microinverter APP connection for real-time

Specification

Packaging data
Ground ballast
NO.	Packaging Type	Illustration	0uter Dimensions	Packaging Details	Packaging Weight (KG)
1	Carton Packaging		13007070mm	Bracket*l sets	18
2	1100*1100mm Pallet Packaging		13001100980mm	Bracket *170 sets	3110
3	20 -foot Container Packaging		54002200980mm	Bracket *1360 sets	24880
Expansion bolts
NO.	Packaging Type	Illustration	0uter Dimensions	Packaging Details	Packaging Weight (KG)
1	Carton Packaging		13006363mm	Bracket*l sets	14.6
2	1100*1100mm Pallet Packaging		13001100959mm	Bracket *210 sets	3116
3	20 -foot Container Packaging		540022002060mm	Bracket *1680 sets	24928
Expansion bolts
NO.	Packaging Type	Illustration	0uter Dimensions	Packaging Details	Packaging Weight (KG)
1	Carton Packaging		13008563mm	Bracket*l sets	15.5
2	1100*1100mm Pallet Packaging		130011001148mm	Bracket *198 sets	3119
3	20 -foot Container Packaging		540022001148mm	Bracket *1584 sets	24952
Solution / Optional Plan
Wind Speed(m/s)		20	20	25	25
Expansion Bolt		×	√	×	√
Ballas Weight (KG)		√	155	√	243
Materials List
NO.		Name	Illustration	Quantity	Remark
1		Base Beam		2	\
2		Inclined Rail		2	\
3		Diagonal Brace		2	\
4		Edge Clamp		4	\
5		Cross Bracket		2	\
6		Ballasted Support Frame		8	Optional
7		Expansion Bolt		6	Optional
8		Balcony Mount Hook		2	Optional

Q:What are Saiko Global's main products and services?

A: Saiko Global provides a wide range of products including ground supports, roof supports, floating supports, BIPV roof solutions, photovoltaic carports, and tracking systems . We also offer comprehensive solar power system integration and full EPC/EPCC technical services.

Q:Do your materials have international quality certifications?

A: Yes, our aluminum alloy materials proudly hold the rigorous Certification for Japanese Industrial Standards (JIS).

Q:What is your manufacturing capacity and can you ensure on-time delivery?

A: We operate three major manufacturing facilities: Xiamen Factory, Quanzhou Aluminum Factory, and Tianjin Production Base. Together, they provide an annual production capacity exceeding 1GW+, ensuring timely delivery for large-scale projects globally.

Q:Which countries and regions do you export to?

A: Our photovoltaic products are exported to over 30 countries globally. Our major markets include Malaysia, Japan, Vietnam, Israel, and the Middle East.

Q:Can you provide structural engineering support for our projects?

A: Absolutely. Our technical support team provides comprehensive services including design and structural analysis of the scaffold, as well as training and guidance on system installation .

Q:Are your BIPV solar carports fully waterproof?

A: Yes, we engineer specialized waterproof BIPV carports that have been successfully installed in MW-level projects.

Q:What types of terrains can your ground mounting systems handle?

A: Our ground support structures are highly adaptable and have been deployed in various environments, including flat and mountainous terrains. We offer aluminum, hot-dip galvanized steel, and magnesium-aluminum-zinc coated steel options.

Q:What kind of roofs are compatible with your mounting structures?

A: We provide customized solutions for multiple roof types, including color-coated steel roof trusses, tile roof trusses, and cement flat roof trusses.

Q:Do your solar tracking systems have industry certifications?

A: Yes, our single-axis tracking systems are both CPP and IEC certified to ensure maximum reliability. We also provide dual-axis tracking systems.

Q:How can I request a quote or a structural proposal?

A: You can easily request a reliable technical solution by reaching out to us at info@saikoglobal.com. Our team will assist you to help secure your project and successfully install the power station.
